Comparative Efficacy of Resin Infiltrant and Two Remineralizing Agents on Demineralized Enamel: An In Vitro Study

INTRODUCTION

White spot lesions are initiated by the pathogenic bacteria that have breached the enamel layer and by the organic acids produced by them. These cause the removal of a certain amount of calcium and phosphate ions that fail to be replaced naturally during the remineralization process.¹ White spot lesions are commonly reversed by the process of remineralization mainly through the application of fluorides.² Deep enamel lesions show a tendency to remineralize only superficially. Consequently, the arrested lesions show a thick and highly mineralized surface layer³ but the underlying lesion body is still porous and the whitish appearance often persists.⁴ The goal of caries management is therefore to stop or arrest the progression of the lesion. But, remineralization brought about by the topical application of fluoride requires multiple treatment sessions and a strict long-term follow-up, which requires strong motivation and cooperation from the patient but is often seen to be difficult to achieve. In addition, the monitoring systems used for assessing the status and progression of the lesions over time are still being studied and are difficult to apply in everyday clinical practice.⁵

A new microinvasive treatment method suggested for the management of white spot lesions is the infiltration of a resin into the lesion. The resin infiltrant prevents the further progression of the initial enamel caries lesion by occluding the microporosities within the lesion as it has a low viscosity.

Remineralization of enamel subsurface lesions has been studied widely both in vitro and in situ as well as in numerous clinical studies.⁶ One such system that has been developed uses casein phosphopeptide (CPP) in order to stabilize the calcium and phosphate ions at higher concentrations and to form an amorphous nanocomplex, namely casein phosphopeptide-amorphous calcium phosphate (CPP-ACP).⁷

In the current practice, nanohydroxyapatite has been widely used an effective anticaries agent mainly because of its unique potential to bring about remineralization.⁸ The size of the calcium phosphate crystal also plays an important role in the formation of hard tissues and also has a significant impact on its intrinsic properties, solubility, and biocompatibility.⁹

Confocal microscopy is a useful tool to study the infiltration of low-viscosity resins (infiltrants) into the initial enamel carious lesion. The images obtained are high-resolution optical images with depth selectivity.¹⁰ Currently, there are no studies available in the literature, which compare the depth of penetration of resin infiltrants to other remineralizing agents like CPP-ACP and nanohydroxyapatite.

Hence, the aim of this study was to determine the caries preventive efficacy of a resin infiltrant (ICON), a CPP-stabilized amorphous calcium phosphate (GC Tooth Mousse), and nanohydroxyapatite (Aclaim) in noncavitated enamel lesions using a confocal laser scanning microscope.¹

MATERIALS AND METHODS

The study was conducted at Rajas Dental College and Hospital in Tirunelveli.

RESULTS

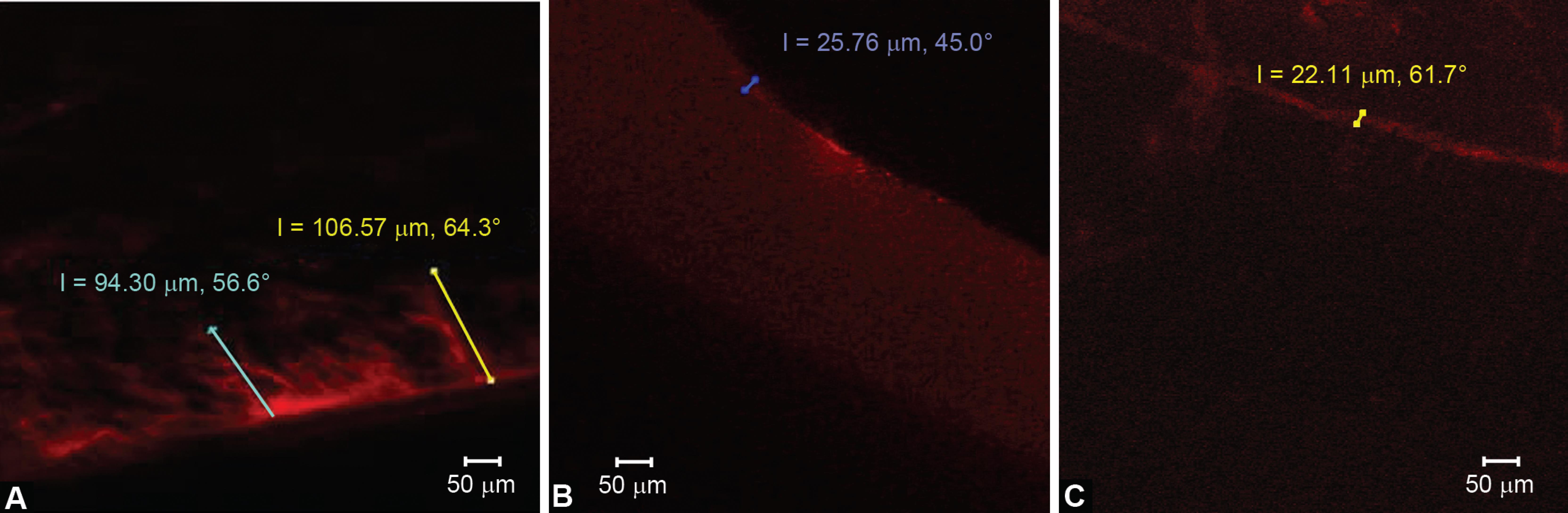

Table 1 shows comparison of group I (resin infiltrant) after demineralization, remineralization, and second demineralization. The mean value after demineralization of enamel samples in demineralizing solution is 245 μm, and after infiltrating with the ICON resin infiltrant there was a mean penetration of 158 μm (Fig. 1A). After second demineralization for a period of 14 days, there was a 22% decrease (Fig. 2A) in the amount of the material that was present.

Table 2 shows comparison of group II (GC Tooth Mousse) after demineralization, remineralization, and second demineralization. The mean value after demineralization of enamel samples in demineralizing solution is 246 μm. After remineralizing the enamel samples for a period of 30 days, there was a surface remineralization of 28 μm (Fig. 1B). After second demineralization for a period of 14 days, there was a 48% decrease (Fig. 2B) in the amount of the remineralized surface.

Table 3 shows the comparison of group III (Aclaim) after demineralization, remineralization, and second demineralization. The mean value after demineralization of enamel samples in demineralizing solution is 250 μm. After remineralizing the enamel samples for a period of 30 days, there was a surface remineralization of 26.3 μm (Fig. 1C). After second demineralization for a period of 14 days, there was a 49% decrease (Fig. 2C) in the amount of the remineralized surface.

Table 4 compares values for all the groups after demineralization, remineralization, and second demineralization. The mean value after demineralization of enamel samples in demineralizing solution is group III (250 μm) > group IV (246 μm) > group II (246 μm) > group I (245 μm). After remineralizing the enamel samples for a period of 30 days, there was a surface remineralization, which is greater for group I (158 μm) (Fig. 1A) > group II (28.8 μm) > group III (26.3 μm). After second demineralization for a period of 14 days, there was a group III (49%) decrease > group II (48%) > group I (22%) (Fig. 2B) decrease in the amount of the remineralized surface.

DISCUSSION

Carious lesions formed on the enamel surface are unique in that the enamel is both acellular and avascular. Thus, in contrast to other tissues, the enamel cannot heal by the cellular repair mechanism.¹² It is now a well-established fact that the formation of incipient enamel white spot lesions is a reversible process, where periods of demineralization alternate with periods of remineralization.¹³ A favorable environment in the oral cavity leads to remineralization and helps in the repair of the carious lesion.¹⁴ In early carious lesions, the enamel surface remains relatively unaltered, whereas the mineral loss associated with the underlying lesion body can be substantial. Clinically, such enamel lesions appear as whitish discolored areas commonly referred to as white spot lesions.¹⁵

In the present study, to create the artificial enamel lesions on the enamel samples, the specimens were exposed to demineralizing solution composed of 6 μm methylhydroxydiphosphonate, 3 mM CaCl₂.2H₂O, 3 mM KH₂PO₄, 50 Mm acetic acid, and traces of thymol for 14 days (pH 5.0 at 37°C) (Buskes et al.¹¹). The pH was checked daily with the help of a pH meter and when necessary it was corrected by adding small amounts of either glacial acetic acid or potassium hydroxide solution and pH was maintained at 5.5. The mean lesion depth after demineralizing the enamel samples for all the four groups was 247 μm, which is in accordance with the results of previous studies by Meyer Lueckal et al.¹⁶ who reported the mean lesion depth was 357 μm and Mueller et al.¹⁷ who reported the mean lesion depth was 237 μm.

In the present study, a confocal laser scanning microscope was used to visualize the penetration of the material. In a study by Pioch et al.,¹⁰ it was proved that a confocal laser scanning microscope had the following advantages of nondestructive examination, since the layer visualized can be situated up to 100 μm below the surface. Moreover, drying of the samples, which is required for conventional scanning electron microscopy or transmission electron microscopy, is not necessary leading to decreased risk of shrinkage or other artifacts.¹⁰

In the present study, acid conditioning with Icon (2 minute with 15% hydrochloric acid) could have led to deeper resin penetration than etching with 37% phosphoric acid gel (Paris et al.¹⁸). It could be argued that removal of the surface layer by 15% HCl could additionally weaken the lesion structure. According to a study done by Meyer-Lueckel et al.,¹⁶ it was proved that no cavitation occurred after acid etching even if the complete surface layer was completely eroded and subsequent resin infiltration could ensure restrengthening of the lesion structure.

In the present study, the Icon-dry (which contains 99% ethanol) was applied for 30 seconds prior to application of the infiltrant. In a study by Paris et al.,¹⁹ it was proved that addition of ethanol is associated with the higher penetration coefficient by decreasing the viscosity and contact angle; hence, they can be used as promising tools for rapid penetration. It was also proved that mixtures containing large amounts of HEMA, TEGDMA, and ethanol are associated with higher penetration coefficients and satisfactory hardening; therefore, they might be promising tools for rapid caries penetration.

In the present study, the mean penetration of the treated enamel samples for the resin infiltrant group (group I), which was observed using a confocal laser scanning microscope, is 158 μm (Table 1 and Figs 3 and 1A). In previous studies by Paris et al.²⁰ and Meyer-Lueckel et al.,²¹ the mean penetrations of resin infiltrants were 58 and 104 μm, respectively.

In the present study, the remineralized areas for group II (CCP-ACP) and group III (nanohydroxyapatite) observed in a confocal laser scanning microscope are 28.8 μm (Table 2 and Figs 4 and 1B) and 26.3 μm (Table 3 and Figs 5 and 1C), respectively. In the present study, paste-type formulation of CPP-ACP was used. The remineralization process of CPP-ACP involves diffusion of calcium and phosphate ions through the protein-/water-filled pores of the caries surface enamel into the body of the enamel lesion. Once in the body of the enamel lesion, these calcium and phosphate species increase the activities of Ca²⁺ and PO₄³⁻, thereby increasing the degree of saturation with respect to hydroxyapatite.²¹

After second demineralization for a period of 14 days, the amount of remaining resin infiltrant that was resistant to acid attack was 114 μm (72%) (Table 1) (Figs 3 and 2A), amount remaining for CPP-ACP was 16.4 μm (Table 2 and Figs 2B and 4) (57%), for nanohydroxyapatite was 13.8 μm (Table 3 and Figs 2C and 5) (50%), increased progression of depth of lesion, and no resistance for the untreated control group (Fig. 6).

There are few limitations; the number of clinical trials was found to be small. Therefore, more high-quality research is needed to evaluate to what extent there is a difference in the effectiveness of infiltrated lesions and sites to be preserved by oral hygiene/fluoride programs. The carryover effect of fluoride applications cannot be totally ruled out and randomized controlled trials with a parallel group design seem mandatory. Moreover, there is need to study the reasons for lesion progress, in vitro and in vivo; mechanical, chemical, and biologic behaviors of materials used as infiltrants, with variations of application procedures (repeated application after different time intervals, possible needs for reinfiltration regimens within preventive-oriented recalls), are considered fields of major interest. Calcium phosphate stabilized by CPP has shown in this study to remineralize enamel subsurface lesions only superficially. Nanohydroxyapatite has a good potential for remineralizing initial enamel caries lesions. In this study, it has showed to remineralize artificial incipient caries lesions superficially.

CONCLUSION

Based on the results of this in vitro study, it can be concluded that the resin infiltrant (ICON) showed higher caries inhibition potential than two remineralizing agents, CPP-ACP (GC Tooth Mousse) and nanohydroxyapatite (Aclaim). In addition, the resin infiltrant showed superior acid resistance when subjecting it to demineralizing solution compared to remineralizng agents. The resin infiltrant has a promising role in the management of early enamel carious lesion because of its penetration into the demineralized enamel. The resin infiltrant can be used as an alternative microinvasive approach.
